Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch

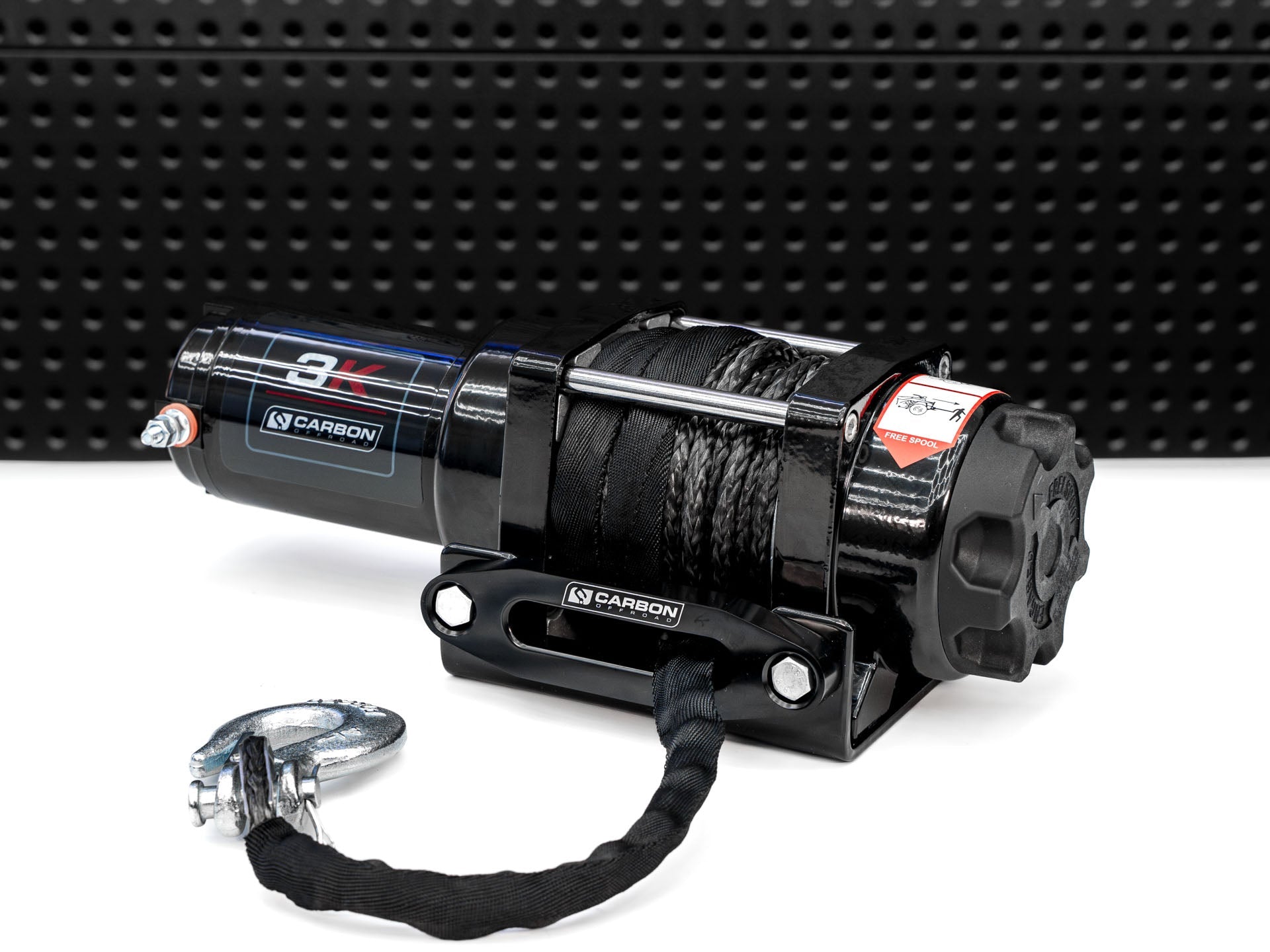

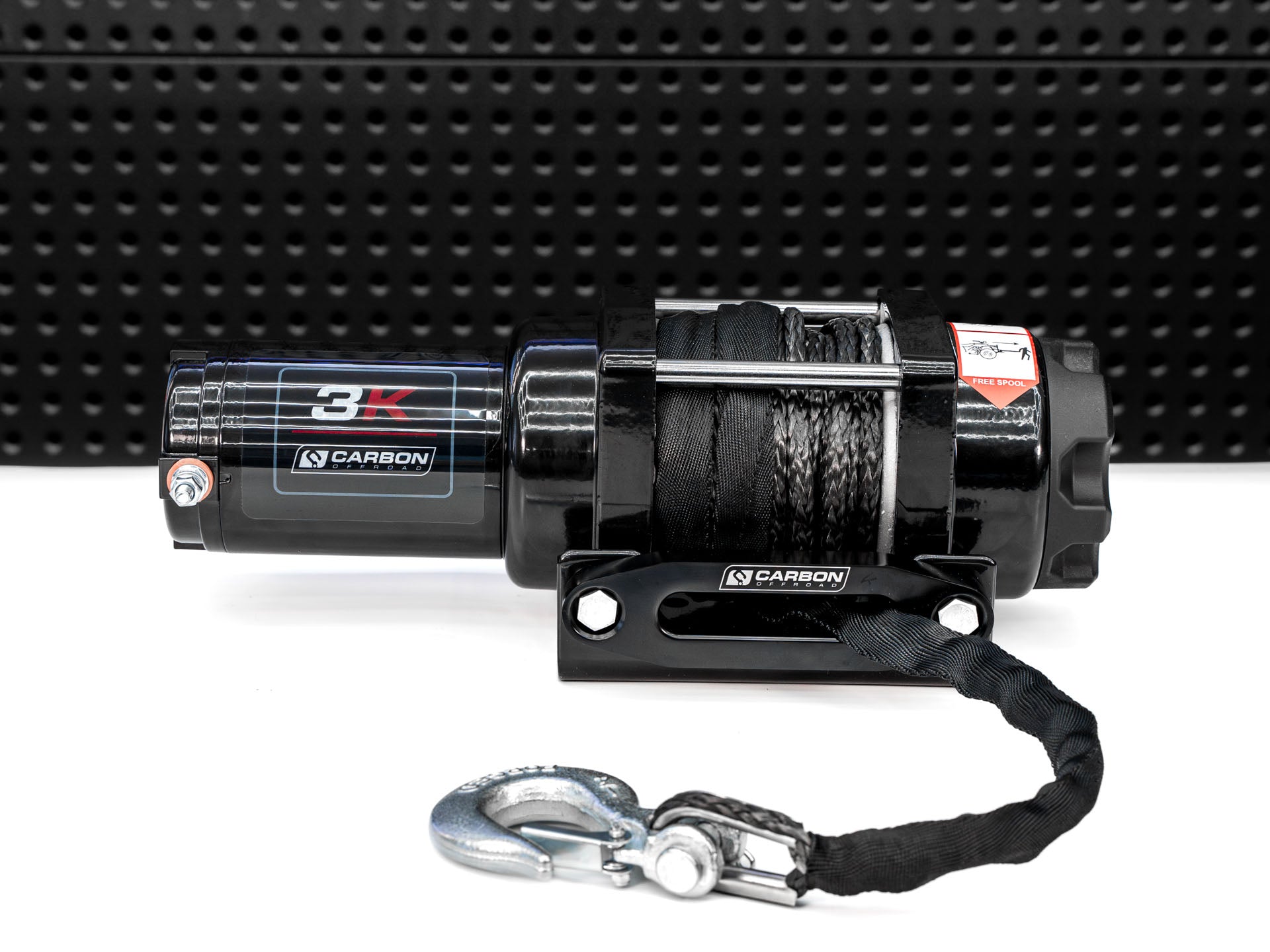

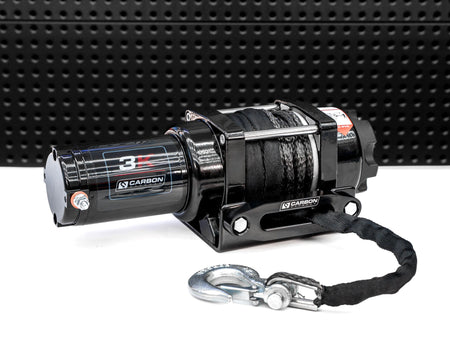

The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch
The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you consider the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.
|
SPECIFICATION / PART NUMBERS CW-3U 3000lb |
Part number: CW-3U
Rated line pull: 3000lbs, (1360kg) single-line
Motor: 12V DC 1.5HP Permanent Magnet motor
Remote Control: Remote Switch, 12� (3.7m) lead.
Wireless Remote Control: Included
Geartrain: Single Stage Planetary.
Gear Ratio: 153:1
Clutch (freespooling): Split Ring Gear
Brake: Self-locking gear train ( Rated Load Holding
Drum Diameter/Length: 1.26��/2.87�� (32mm/73mm)
Synthetic Rope: 43�, 3/16�� diameter ( 13m, 4.8 diameter)
Fairlead: Roller
Mounting Bolt Pattern: 3.0�� x 4.87�� ( 76mm x 124mm )
Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310x 127 x 127mm )
Packing Dimensions( L x W x H ): 15.7��x 7.9'' x 8.7'' ( 400 x 200 x 220mm )
Shipping Weight: 10kg ( 22lbs)
Warranty : 1 year
|
12V DC PERFORMANCE SPECS (first layer of drum) |
|||
|
Line Pull |
Line Speed |
Motor |
Pull by layer |
|
0 |
20.4(6.2) |
10Amps |
1/3000(1360) |
|
1000(453) |
14.2(4.3) |
65Amps |
3/2725(1235) |
|
2000(907) |
10.9(3.3) |
96Amps |
3/2480(1125) |
|
3000(1360) |
7.7(2.4) |
||
