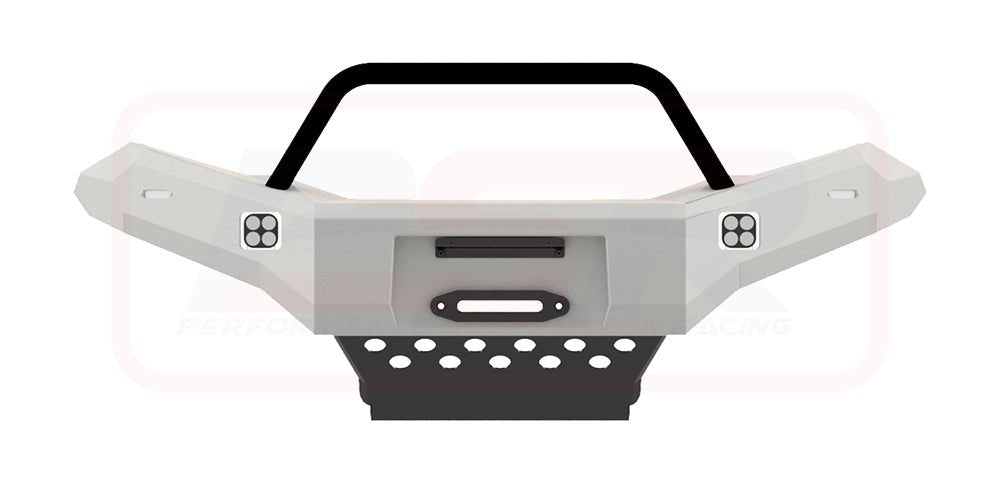

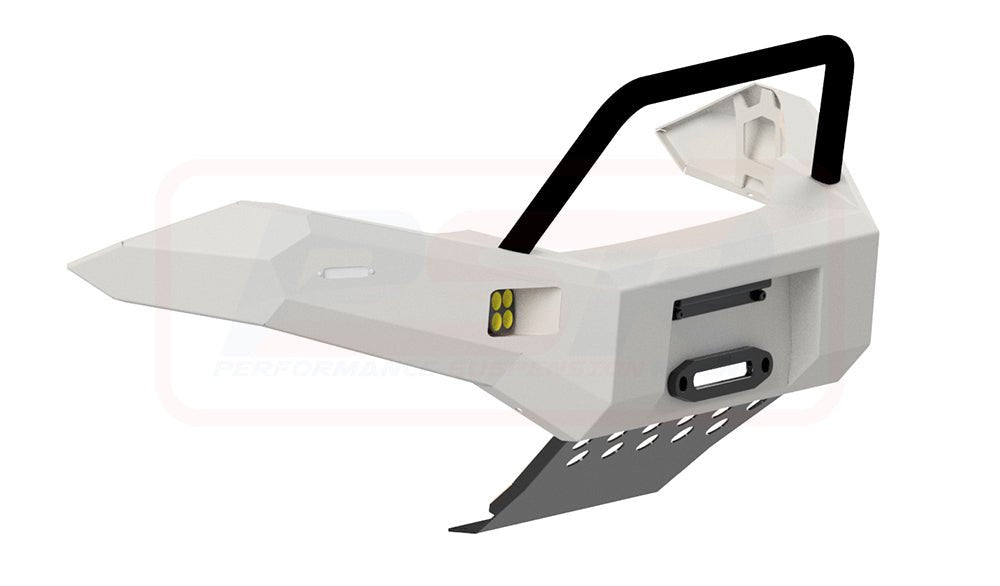

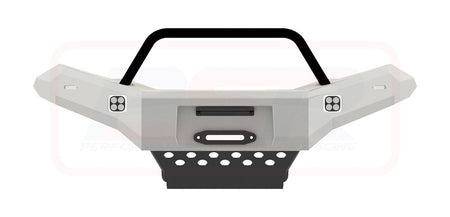

Isuzu D-Max (2012-2017) PSR 1 (Strut Front) 2012-2017 Ambush Single Hoop Bullbar
Product details
- Type Bullbars & Bashplates
- Brand PSR - Performance Suspension Racing
- SKU PSRDMAX-023-KIT
Isuzu D-Max (2012-2017) PSR 1 (Strut Front) 2012-2017 Ambush Single Hoop Bullbar
PSR AMBUSH BAR is a totally unique design that is proudly 100% Aussie made in-house at PSR headquarters, tested and approved we offer a bar like no other on the market. Sleek lines, tough as nails design and a huge approach angle makes our bar tough to beat.
These Ambush Bars are assembled to order to suit your requirements, with an average lead time that can vary between 8-10 weeks.
PSR proudly supplies a high quality Dulux Satin Black finish. If you desire a painted finish a local painter will be required to complete the process.
Ambush Bars are available in 5 different variations:
- Hoopless
- Sheet Metal Hoop
- Low Single Hoop
- Single Hoop
- Triple Hoop
A huge feature of the Ambush Bar design allows the purchase of a Hoopless bar and at a later stage a hoop variation can be added allowing you to change the look of the bar. This applies to the Sheet Metal or Low Single Hoop which are bolted to the bar, or if purchased initially will be supplied assembled to the bar.
Every Ambush Bar comes with built in high quality 4 LED driving lights which feature a 2 LED spot and 2 LED spread combo for optimum visibility in night time driving conditions and are backed by a 5 year warranty! Also supplied as standard is a PSR fairlead which is available in 2 variations of Slimline or Standard with a choice of silver or black which allows you to tailor the look you desire!
All Ambush Bars come in a high quality Dulux powdercoated Satin Black finish.
Our bar can be supplied in Standard, 1' and 2' body lift configurations and adding to the versatility of the Ambush range mounts are available to purchase separately, thus allowing adding or removing of body lift to accommodate bar position.
An infill is supplied with every bar and to add contrast is finished in charcoal grey. This unique addition is the PSR 'Pre-Runner' infill.

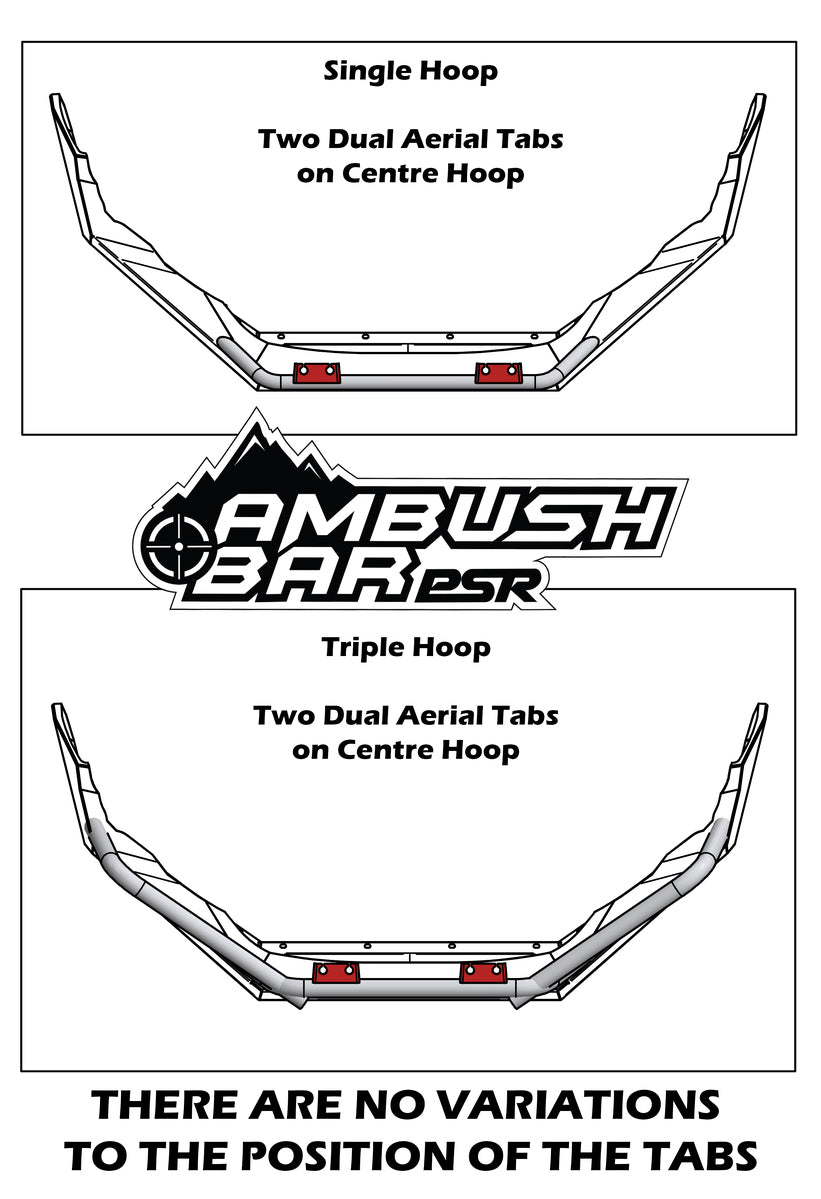

Dual twin aerial mounts come standard on Single and Triple Hoop and are positioned on the left and right of the center hoop. (See picture in listing for location).

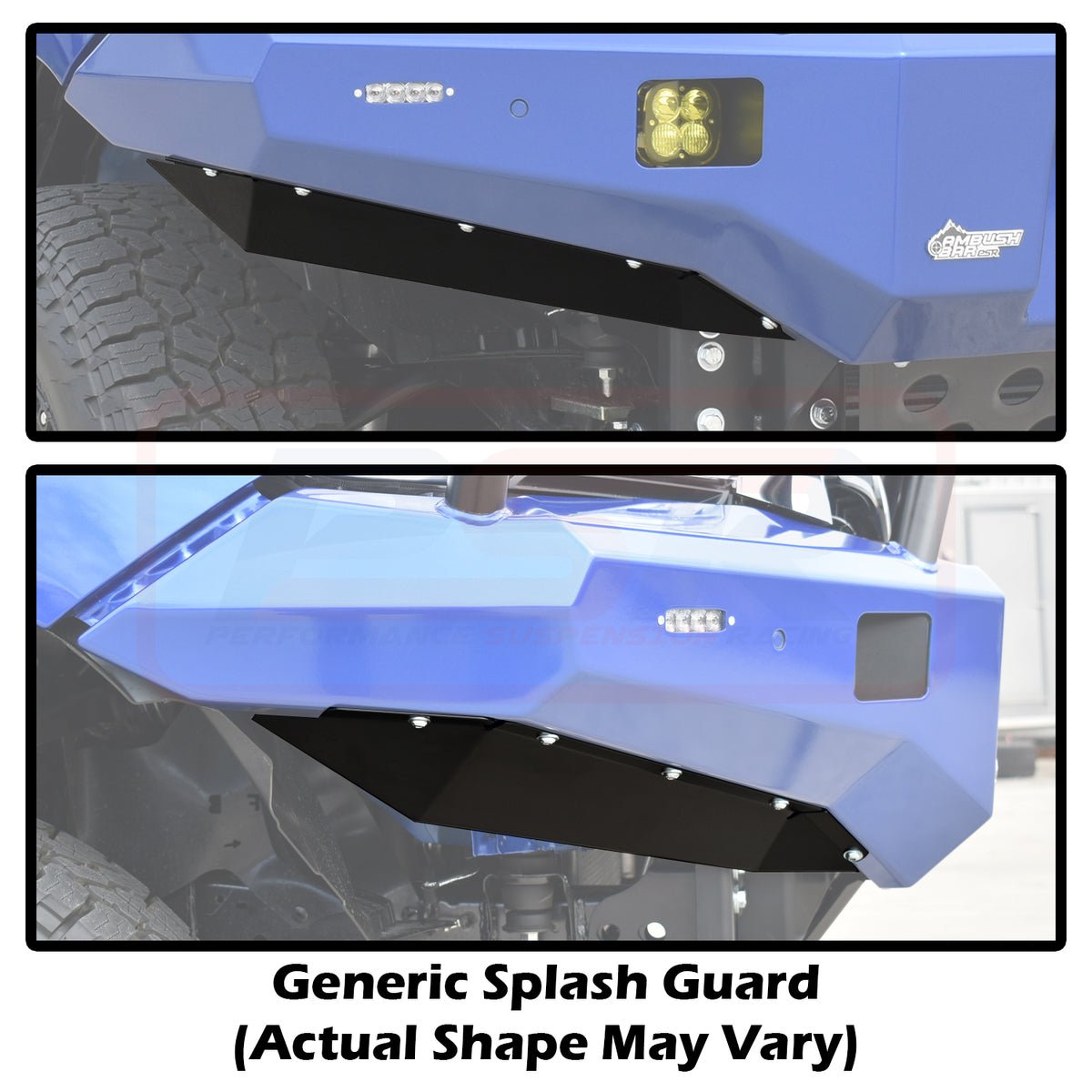

An additional product can be purchased that offers more wheel coverage, see splash guard option on product drop down. This can also be purchased at a later date if required.
All standard low mount winches fit inside the bar winch cradle area.
- PSR Ambush Single Hoop Bullbar
- Suits Isuzu D-MAX 1 (Strut Front) 2012-2017
- All standard low mount winches fit to the bars
- Satin Black Dulux powdercoated finish
- Options include:
- Four Fairlead Styles (Black or Silver / Slimline or Standard)
- Able to be purchased in 0', 1' and 2' body lift configurations
- Splash Guards
Isuzu D-MAX (10/2008 - 06/2020)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
ISUZU | D-MAX | 06/2012 | 05/2020 | Cab Chassis | TFR, TFS | 4JJ1-TC | 3.0L | Diesel | CRDi | AWD |
ISUZU | D-MAX | 06/2012 | 05/2020 | Cab Chassis | TFR, TFS (TFR85J) | 4JJ1-TC | 3.0L | Diesel | CRDi | RWD |
ISUZU | D-MAX | 06/2012 | 05/2020 | Cab Chassis | TFR, TFS | 4JJ1-TC | 3.0L | Diesel | CRDi | RWD |
ISUZU | D-MAX | 06/2012 | 05/2020 | Ute | TFR, TFS (TFS85J) | 4JJ1-TC | 3.0L | Diesel | CRDi | AWD |
ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFS | 4JJ1-TCX | 3.0L | Diesel | EX, SX | Automatic/Manual 4WD |
ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFR | 4JJ1-TCX | 3.0L | Diesel | LS HI-RIDE, LS-T HIGH-RIDE, LS-TERRAIN HI-RIDE, LS-U HI-RIDE, SX, SX HI-RIDE | Automatic/Manual RWD |
ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFS | 4JJ1-TCX | 3.0L | Diesel | LS-M, LS-M HI-RIDE, LS-T 01/19, LS-TERRAIN HI-RIDE, LS-U, LS-U HI-RIDE, SX, SX HI-RIDE, X-RIDER LIMITED EDTION, X-RUNNER | Automatic/Manual 4WD |
ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFS | 4JJ1-TCX | 3.0L | Diesel | LS-U, LS-U HI-RIDE, SX SPACE CAB | Automatic/Manual 4WD |
ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFR | 4JJ1-TCX | 3.0L | Diesel | SX, SX HI-RIDE, SX LOW-RIDE | Automatic/Manual RWD |
ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4WD | |
ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | RWD | |
ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | RWD | |
ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | 4WD | |
ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | 4WD | |
ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | RWD | |
ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | RWD | |
ISUZU | D-MAX | 06/2012 | 12/2016 | Ute | TF | 4JK1-TC | 2.5L | Diesel | Automatic/Manual 4WD | |
ISUZU | D-MAX | 06/2012 | 12/2016 | Ute | TF | 4JK1-TC | 2.5L | Diesel | Automatic/Manual RWD | |
ISUZU | D-MAX | 07/2009 | 05/2012 | Ute | TFS | 4JJ1-TC | 3.0L | Diesel | SX SPACE CAB | 4WD |
ISUZU | D-MAX | 10/2008 | 05/2012 | Ute | TF | 4JJ1-TC | 3.0L | Diesel | Automatic/Manual RWD |
