Isuzu D-Max (2020-2025) PSR 3 - Mazda BT-50 TF 2021-ON Chassis Saver Front Bash Guard Rear Half
Product details
- Type Bullbars & Bashplates
- SKU PSRDMAX-081
Isuzu D-Max (2020-2025) PSR 3 - Mazda BT-50 TF 2021-ON Chassis Saver Front Bash Guard Rear Half
A huge factory flaw is the chassis now has removed the bolt in, very strong pair of braces that tie the main centre x member to the front radiator x member, this causes massive deflection in the chassis and ultimately will lead to failure and component damage around the bar itself, we have seen this with multiple brands of bars on the market including factory bars fitted from dealers!
Further to the bracing of the front chassis section is the integration of full underbody protection, taking care of the fragile rack and diff that sits underneath ready to get damaged when you venture offroad!

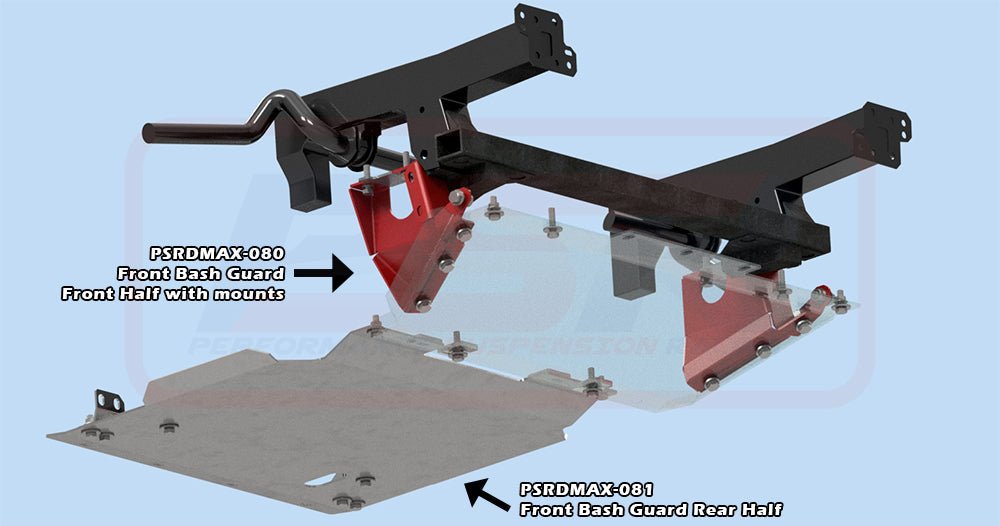

This product is designed to work with the front PSRDMAX-080 but can be used by itself.
- 4mm Fabricated bash guard
- Couples to the PSRDMAX-080 for chassis rigidity and fatigue management.
- Super strong and doubles as an underbody bash guard
- Protect your steering rack and diff!
- Works with OE X member and PSR Diff drop
Shipment Processing Time/Click & Collects
Shipment Processing Time/Click & Collects
Orders are dispatched within 1-3 weeks as they are typically made to order. Dispatch times vary.
Due to freight costs, any orders that are to be made with the 'click and collect' shipping option will be subject to a $89 handling charge, no exceptions.
Orders are not shipped or delivered on weekends or holidays.
DMAX
Isuzu D-MAX (06/2020 - on), Mazda BT-50 (07/2020 - on)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
ISUZU | D-MAX | 10/2021 | - | Cab Chassis | TFR, TFS | RZ4E-TC | 1.9L | Diesel | RWD | |
ISUZU | D-MAX | 07/2020 | - | Cab Chassis | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD | |
ISUZU | D-MAX | 07/2020 | - | Cab Chassis | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual RWD | |
ISUZU | D-MAX | 07/2020 | - | Single Cab | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD | |
ISUZU | D-MAX | 07/2020 | - | Single Cab | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual RWD | |
ISUZU | D-MAX | 07/2020 | - | Ute | TFS40 | 4JJ3-TCX | 3.0L | Diesel | CRD | Automatic/Manual 4WD |
ISUZU | D-MAX | 07/2020 | - | Ute | TFR40 | 4JJ3-TCX | 3.0L | Diesel | LS-U, SX | Automatic RWD |
ISUZU | D-MAX | 07/2020 | - | Ute | TFS40 | 4JJ3-TCX | 3.0L | Diesel | LS-U, SX SPACECAB | Automatic/Manual 4WD |
ISUZU | D-MAX | 07/2020 | - | Ute | TFS40 | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD |
ISUZU | D-MAX | 07/2020 | - | Ute | TFS | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD |
ISUZU | D-MAX | 07/2020 | - | Ute | TFR40 | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual RWD |
ISUZU | D-MAX | 07/2020 | - | Ute | TFR40 | 4JJ3-TCX | 3.0L | Diesel | SX SPACECAB | Automatic RWD |
ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS | 3.0L | Diesel | DDI | 4WD |
ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS | 4JJ3-TCX | 3.0L | Diesel | DDI | AWD |
ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS (TFR40J) | 4JJ3-TCX | 3.0L | Diesel | DDI | RWD |
ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS | 4JJ3-TCX | 3.0L | Diesel | DDI | RWD |
MAZDA | BT-50 | 11/2021 | - | Cab Chassis | TF | RZ4E-TC | 1.9L | Diesel | AWD | |
MAZDA | BT-50 | 11/2021 | - | Cab Chassis | TF | RZ4E-TC | 1.9L | Diesel | RWD | |
MAZDA | BT-50 | 11/2021 | - | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4WD | |
MAZDA | BT-50 | 01/2021 | - | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4x2 | RWD |
MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF | 4JJ3-TCX | 3.0L | Diesel | 4WD | |
MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF (TFS40JDR, TFS40JPR) | 4JJ3-TCX | 3.0L | Diesel | AWD | |
MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF (TFR40JDR, TFR40JPR) | 4JJ3-TCX | 3.0L | Diesel | RWD | |
MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF | 4JJ3-TCX | 3.0L | Diesel | RWD |
