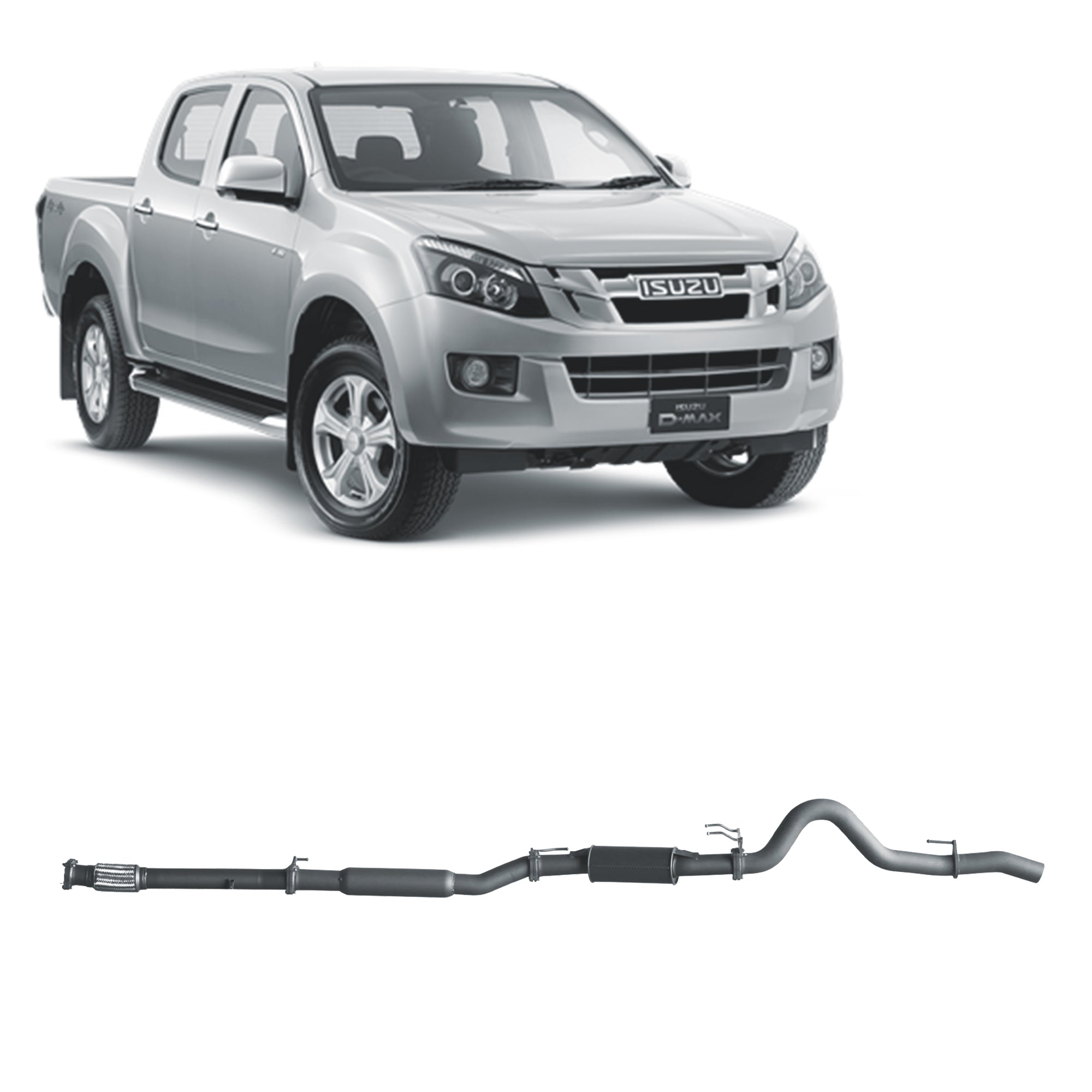

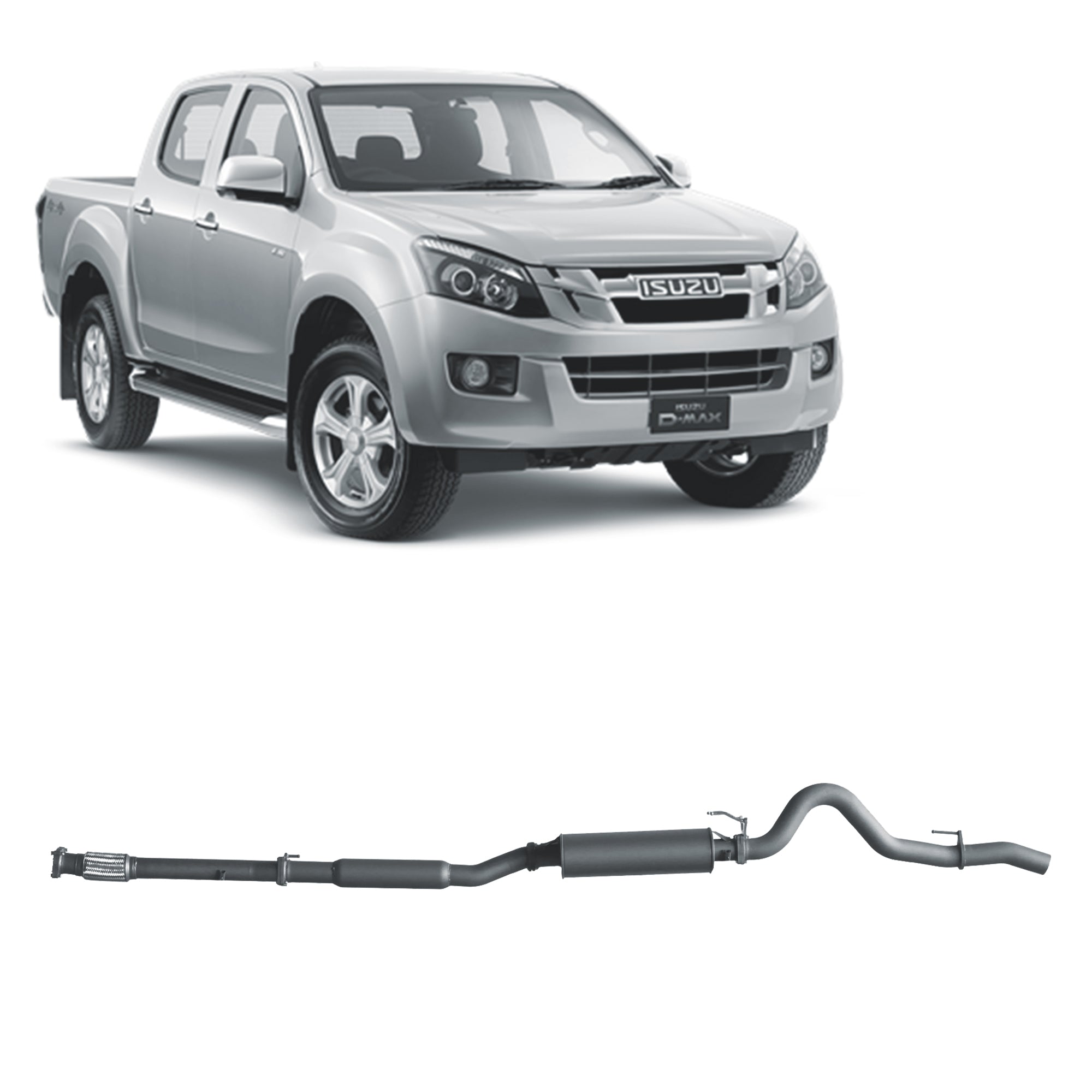

Redback Extreme Duty Exhaust for Isuzu D-MAX (02/2017 - 10/2020)

Name: Redback Extreme Duty Exhaust for Isuzu D-MAX (02/2017 - 10/2020)
Brand: Redback
SKU: IDX12800-PO
Price: 1015.0 AUD
Availability: InStock

In stock

$1,015.00 AUD inc. GST

Muffler option No Muffler (pipe only) With Resonator With Large Muffler

Product variants

Product details

Type 4x4 Exhaust System
SKU IDX12800-PO

You might want this!

Recommended

Gasket maker - 750 F, Gray RTV Silicone, 85g, Oxygen sens...

$19.99 AUD

Suits 4WD Models fitted with DPF only.

Product Specifications:

3" DPF Back Exhaust

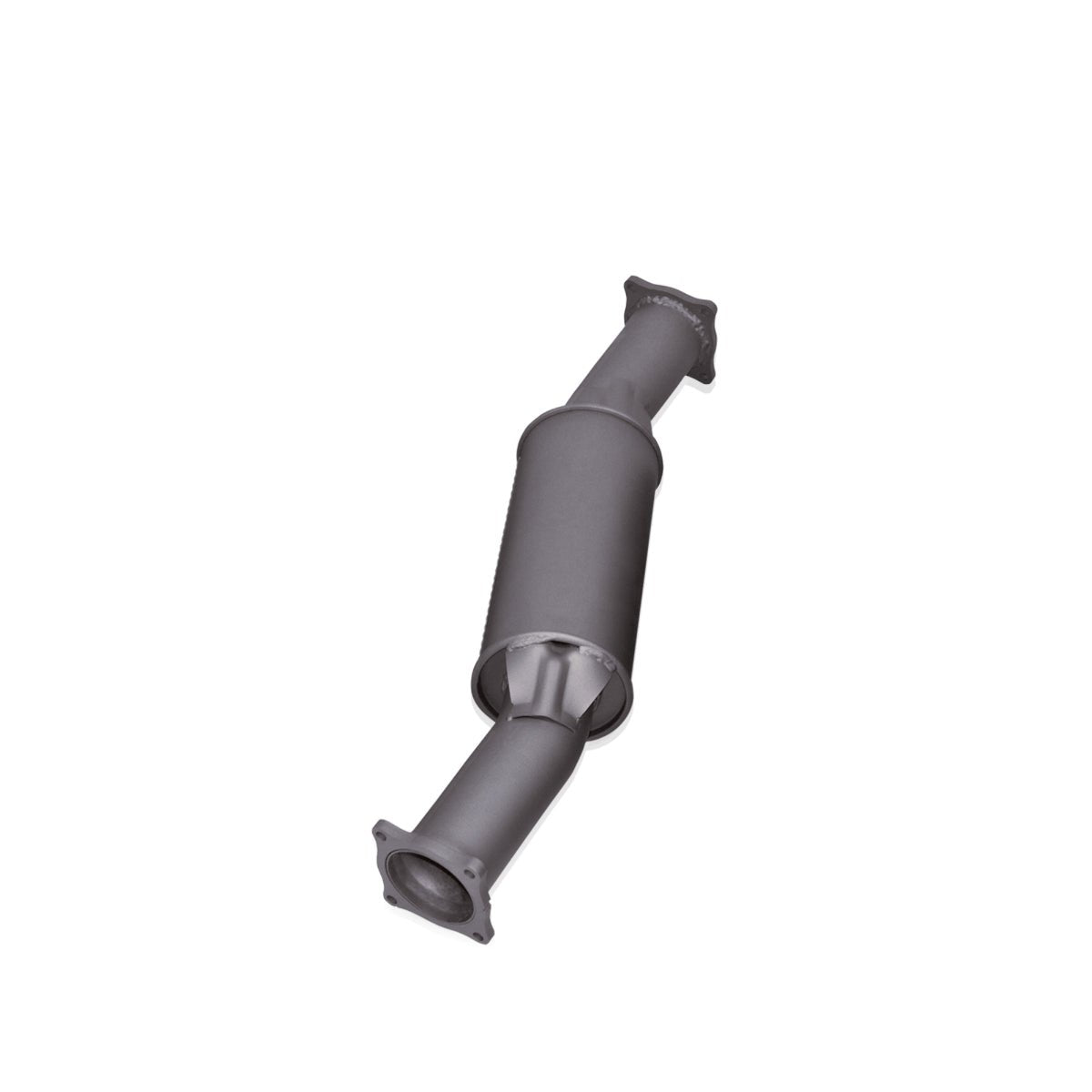

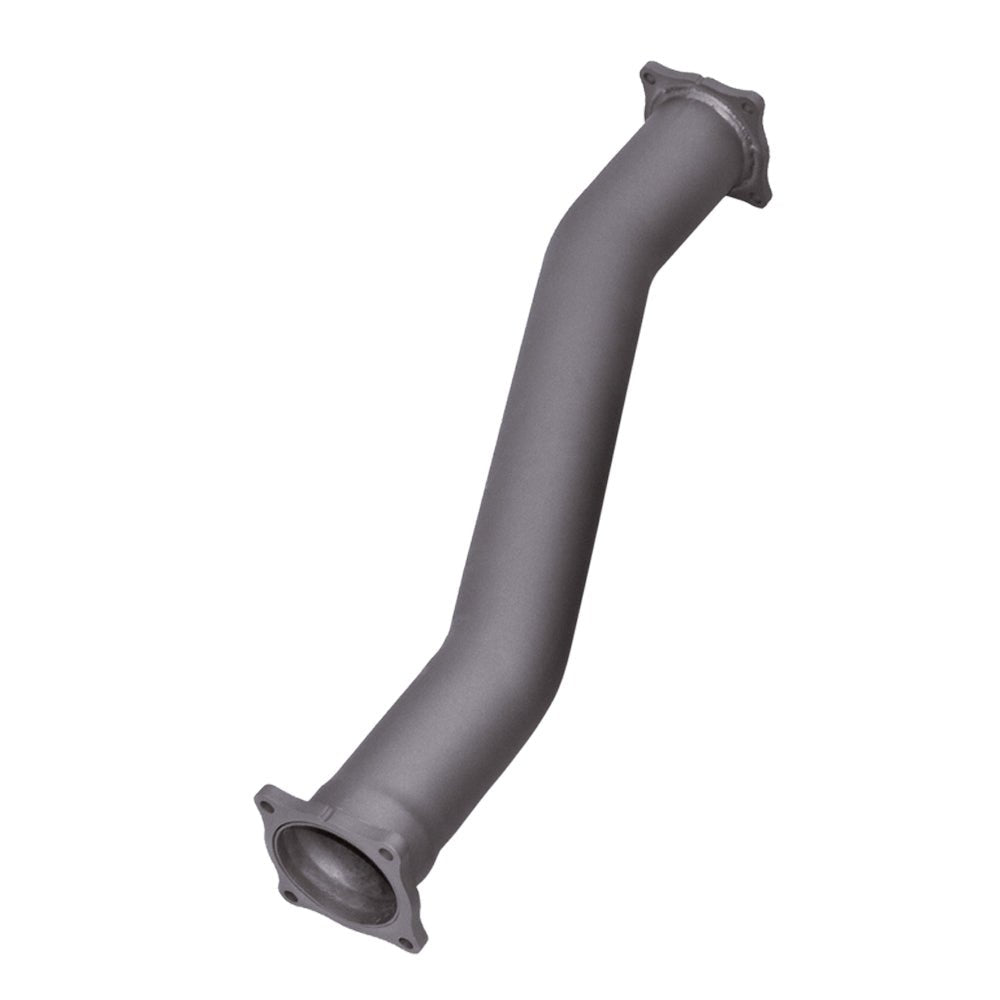

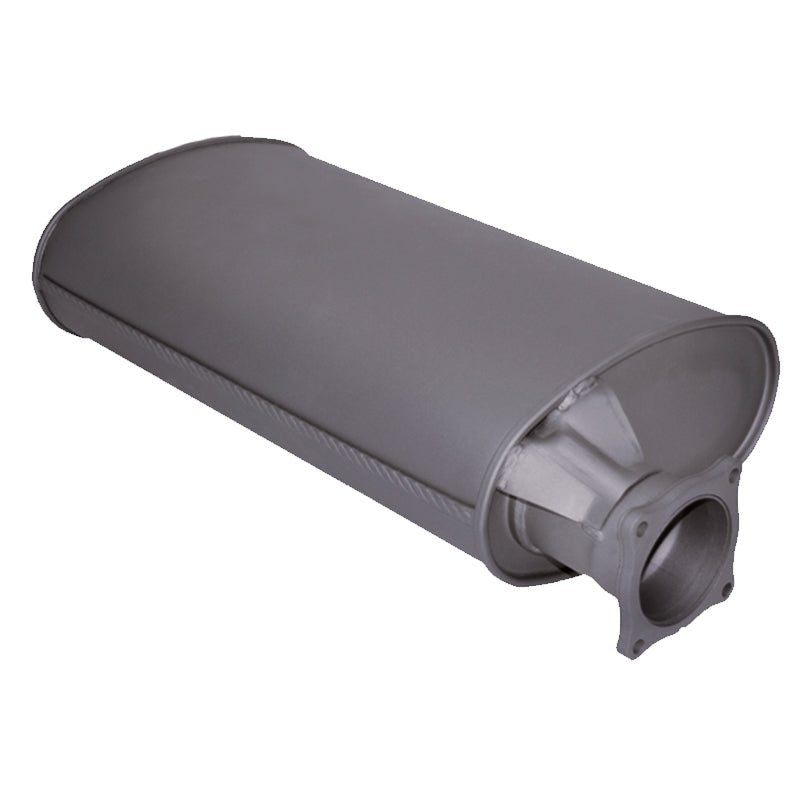

Available Sound Options include 11"x6" Large Straight Through Muffler, 5" Round Straight Through Resonator or Muffler Delete (Pipe Only)

Features and Benefits:

Australian Designed and Made
10-Year Warranty
409 Stainless Steel Tube
4 Bolt, 10mm Thick Flange Plates
Extreme Duty Hanger Brackets
Removable Plug Boss for EGT (1/4" NPT)
Pressed Fire Ring Gaskets
Coated with Premium Heat Proof Paint

Aftermarket Accessories: No known fitment issues

Approximate Fitting Time: 1 Hour

Isuzu D-MAX (06/2012 - 06/2020)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
ISUZU	D-MAX	06/2012	05/2020	Ute	TFR, TFS (TFS85J)	4JJ1-TC \| 3.0L \| Diesel	CRDi	AWD
ISUZU	D-MAX	06/2012	06/2020	Ute	TFS	4JJ1-TCX \| 3.0L \| Diesel	EX, SX	Automatic/Manual 4WD
ISUZU	D-MAX	06/2012	06/2020	Ute	TFS	4JJ1-TCX \| 3.0L \| Diesel	LS-M, LS-M HI-RIDE, LS-T 01/19, LS-TERRAIN HI-RIDE, LS-U, LS-U HI-RIDE, SX, SX HI-RIDE, X-RIDER LIMITED EDTION, X-RUNNER	Automatic/Manual 4WD
ISUZU	D-MAX	06/2012	06/2020	Ute	TFS	4JJ1-TCX \| 3.0L \| Diesel	LS-U, LS-U HI-RIDE, SX SPACE CAB	Automatic/Manual 4WD

Isuzu D-MAX (11/2015 - 06/2020)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
ISUZU	D-MAX	11/2015	06/2020	Ute	TFR	4JJ1-TCX \| 3.0L \| Diesel	SX SPACE CAB	Automatic/Manual RWD

Specifications

Fits Vehicle Year From (Month): 10
Fits Vehicle Year From: 2016
Muffler Option: No Muffler (pipe only)
Configuration: Offset/Centre
Coating: Premium Heat-Proof Paint
Material Type: Stainless Steel
Fitting Time Approx: 1 hr
Tube Size: 3"
System Layout: DPF Back System
Aftermarket Accessory Fitted: None
