S5 Y62 Nissan Patrol Rear Bar V2

_______________________

THIS PRODUCT IS MADE TO ORDER
Current manufacturing lead time: APRIL./MAY 2025

_______________________

Our Y62 Patrol Version 2 Rear Bars suit Y62 Patrol models; Series 5, all models.
These new bars were design to be super high clearance.
Comes with a 3.5 tonne incorporated tow hitch along with a 4" drop hitch to suit most vehicles.
These bars come with full waterproof loom kits, as standard, to ensure easy fitment/connection of your Raslarr rear bar lights.
Running non-supplied hitch could change your tow rating and/or void our warranty terms.
Ability to chose from different carrier configurations.
The centre part of the rear bar is made from 6mm steel, and the wings are made from 3mm steel.
All laser cut to precision.
The Ti-L rear bars come with a custom wing infill to allow for the Blind-spot/Lane departure sensor.
All features technology based on your vehicle will work exactly the same with our products fitted.
The sensors get refitted back into the rear bar and your trailer plugs have a nice provision tucked up underneath the rear bar.
Comes with new RoadVision reverse and stop/tail lights.

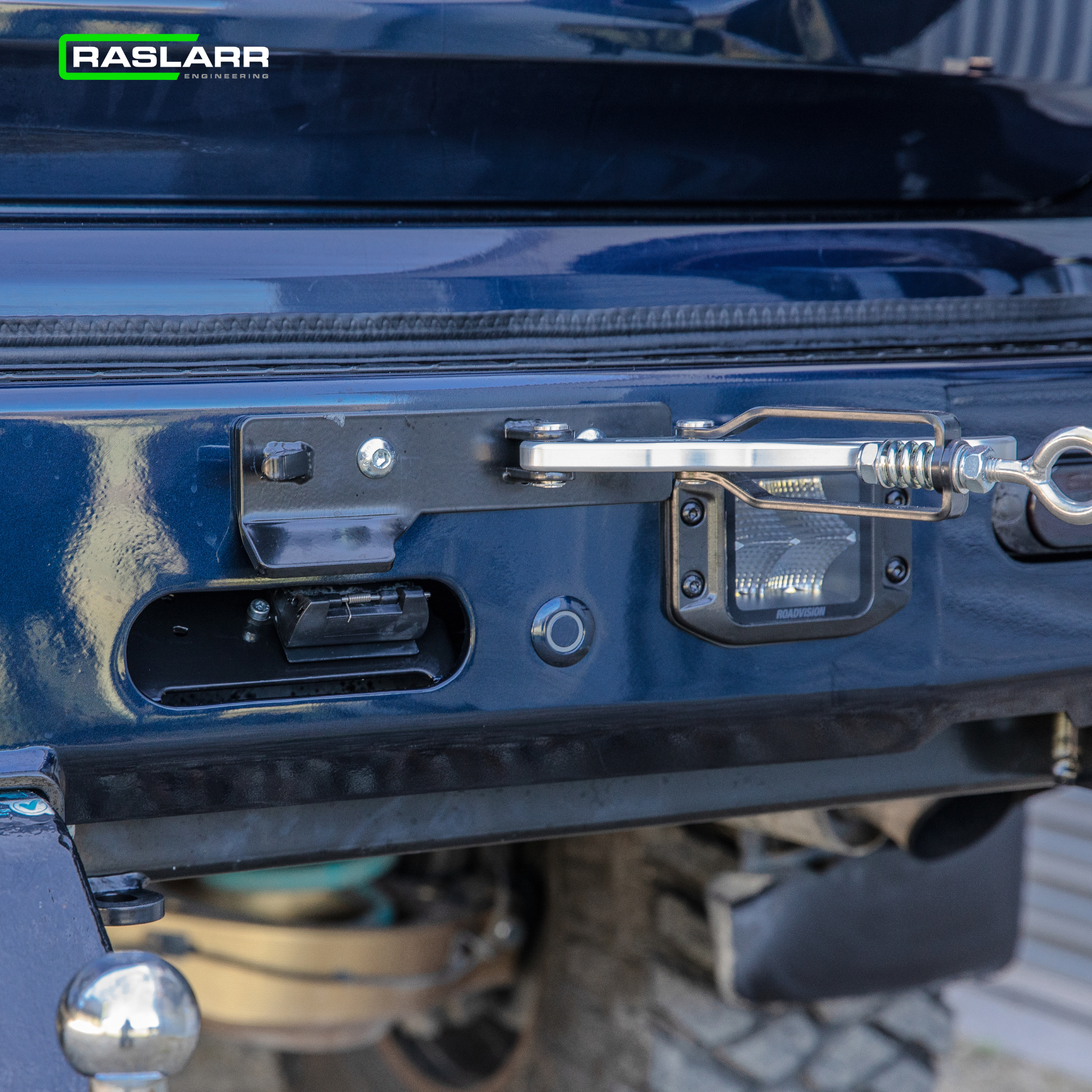

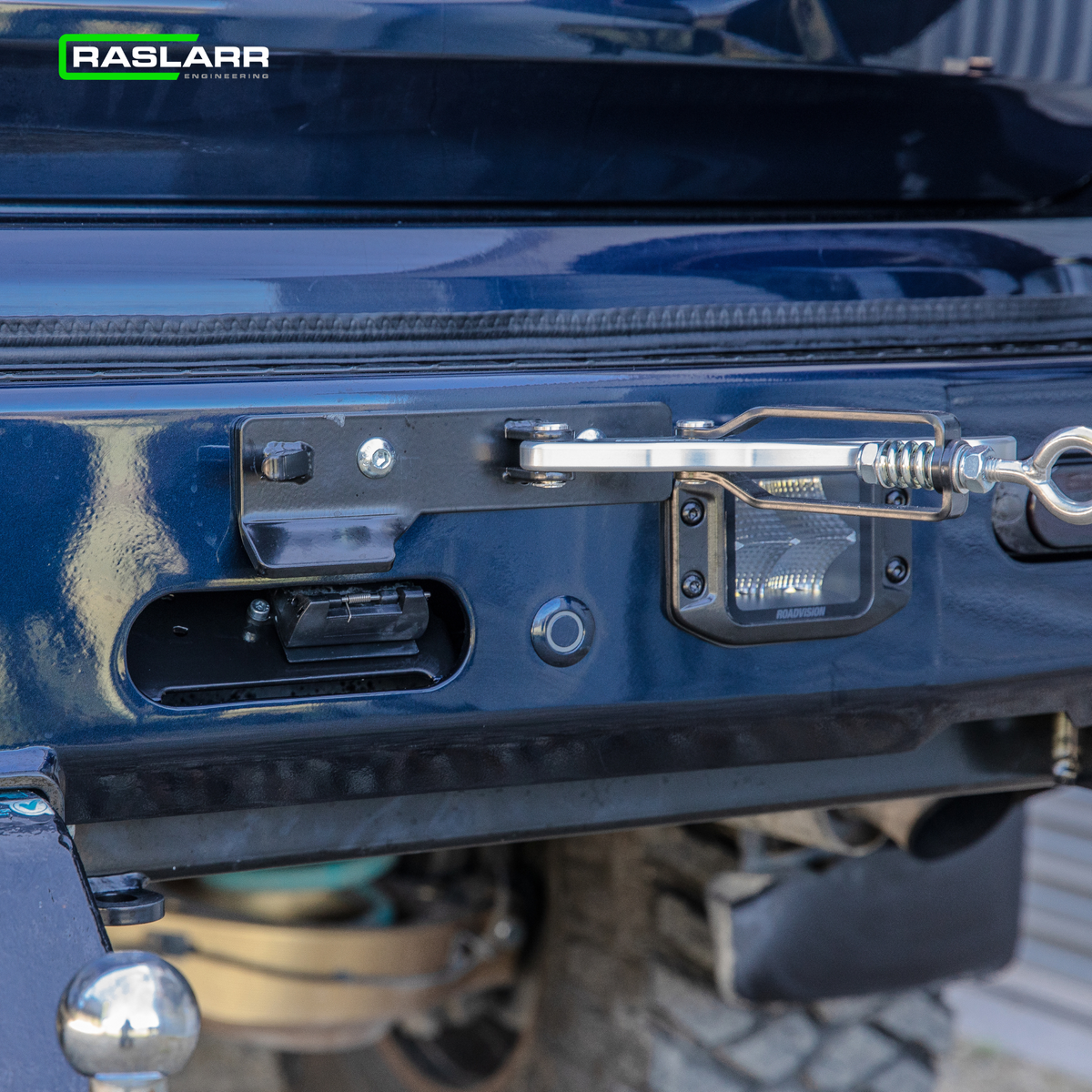

The swing aways have Australian made fully adjustable stainless and billet combination latches paired with CNC machined joints running a roller bearing to allow for smooth operation.
Swing aways are fitted with gas struts for peace of mind when opening carriers.
If opting for the wheel carriers, these are equipped with adjustable mounting flange to suit different offset wheels.

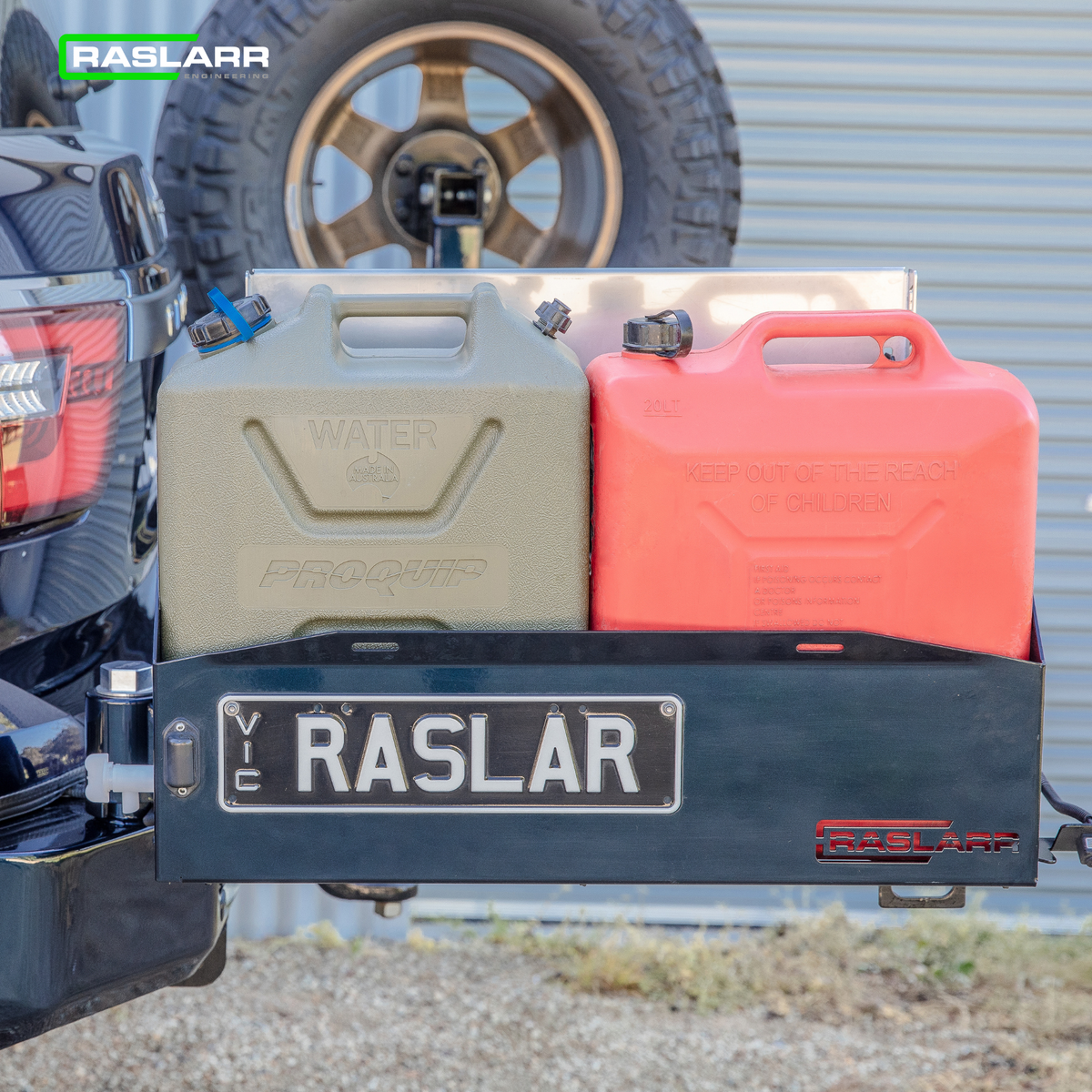

All rear bars are capable of carrying up to dual 35's comfortably or 35" tyre and dual jerry can holders.

HARNESS/WIRING SYSTEM INFORMATION:

This kit replaces the Nissan style trailer plug kit to include the reverse signal in the loom allowing a direct plug in system to your Raslarr rear bar.
This also has an incorporated trailer plug loom & 7-pin flat plug.

WEIGHT OF PRODUCT:
Rear Bar: 78kgs
Wheel Carriers: 15kgs
Dual Jerry Can Holders: 17kgs

Camera can be relocated or remain on the door.
Unfortunately the camera relocation kit is only applicable to the S4 and S5, S1-3's will need to be relocated yourself or by your chosen auto-electrician.
These are made from quality Australian steel with quality workmanship.
All proudly manufactured in Lilydale, Victoria.

SHIPPING COSTS

Shipping is not included in the price of the product and will be added onto your order confirmation.
To confirm a shipping price, please email prior to your order.

We only ship within Australia (no international shipping).
Shipping to a business with a forklift is preferred, however these can be shipped to residential addresses (via tailgate truck) for an additional $210 on top of the quoted price.
We can also ship to a depot for local collection.
If you are unhappy with the shipping price quoted, please contact us and we can look at alternative options.

COLOUR CODING

Our products come standard sandblasted, zinc primed and powder coated in a Satin black as standard.
We can colour match the bar work to your vehicle, however we require your exact colour code i.e. KAD, QAC etc.
Painting of rear bar only: $680
Painting of rear bar & carrier(s): $790
>>PEARL<< is an additional $150.

FITTING COSTS

The total time Raslarr takes to fit a Y62 Patrol Rear Bar is 8 hours.
Cost: $1,080.00
